External thread stop valve
Design and manufacture:ANSI B16.34-1996
Connection Type:NPT(M.F)internal External thread Connection
Structure feature: cone Thread sealing
Valve inspection and test:APISTD598-2004

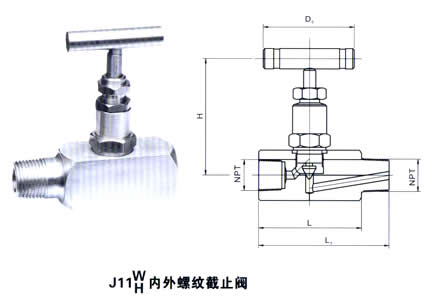

J11WH internal External thread stop valve      Unit: MPa

Item

Pressure value

Nominal pressure

6000PSI

Body test

6000PSI

Seal test

6000PSI

Pneumatic test

24

Operating temperature

≤250℃

Medium

water Steam oil

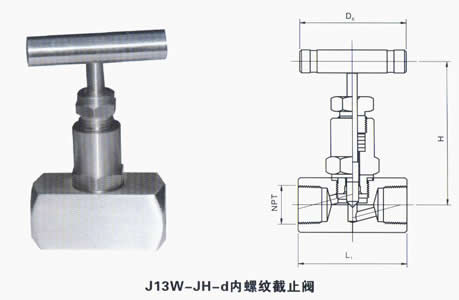

J13W-JH-d Internal thread stop valve

Specifications

NPT

L

L1

H

D0

DN6

1/4NPT

58

75

75

60

DN10

3/8NPT

58

78

75

60

DN15

1/2NPT

68

86

77

60
