Pound grade Power station "Y" type stop valve

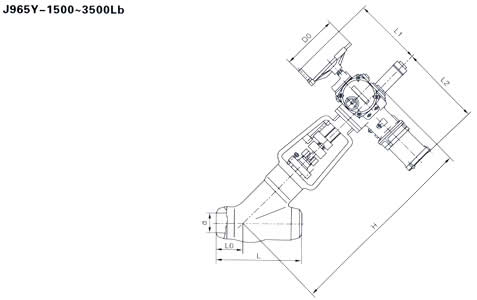

Size and connection size

J965Y-1500Lb
Specifications DN	Model	D	L	L0	H	D0	L1	L2	Weight (kg)
in	Model	mm							Weight (kg)
3	SMC-0	64	368	140	990	305	410	565	200
4	SMC-1	84	457	170	990	305	420	654	310
5	SMC-1	100	533	1 95	1115	305	420	654	514
6	SMC-2	126	610	190	1763	457	440	688	534
8	SMC-2	158	762	262	2026	457	440	688	950
J965Y-2000Lb
4	SMC-1	80	457	170	990	305	420	654	327
5	SMC-1	96	533	195	1115	305	420	654	408
6	SMC-2	118	610	1 90	1423	457	440	688	470
8	SMC-2	148	762	262	1615	457	440	688	1050
10	SMC-4	180	914	300	2240	610	715		1582
12	SMC-4	222	1041	360	2490	610	715		2340
J965Y-2500Lb
2 1/2	SMC-00	38	310	120	810	305	400	555	130
2	SMC-00	46	340	130	895	305	400	555	160
3	SMC-0	54	390	140	995	305	410	565	217
4	SMC-1	70	480	170	1050	305	420	654	337
5	SMC-1	86	580	195	1115	305	420	654	432
6	SMC-2	104	630	200	1280	457	440	688	652
8	SMC-2	130	770	260	1615	457	440	688	1122
10	SMC-3	162	930	300	1930	610	690		1652
12	SMC-4	210	1060	360	2240	610	715		2826
14	SMC-4	234	1160	395	2420	610	715		3662
J965Y-3500Lb
3	SMC-0	48	470	150	1005	305	410	565	272
4	SMC-0	60	550	175	1133	305	410	565	387
5	SMC-1	74	660	200	1280	305	420	654	582
6	SMC-1	88	790	230	1320	305	420	654	847

Pound grade Power station "Y" type stop valve

Materials

Name	Trademark
Body	WCB	WC1	WC6	WC9
valve seat	25	15CrMoA	12Cr1MoVA
valve clack	WCB (25)	WC1	WC6	WC9
Cap	25	15CrMoA	12Cr1MoVA	12Cr1MoVA
valve handle	1Cr17Ni2	1Cr17Ni2	20Cr1Mo1V1A	20Cr1Mo1V1A
valve handle	1Cr17Ni2	1Cr17Ni2	SUH600	SUH600
support	WCB	WCB	WCB	WCB
support	WCB	WC1	WC6	WC9
seal ring	S soft steel (Reinforced Flexible Graphite )		S soft steel	F soft steel
packing	Reinforced Flexible Graphite
disc spring	60Si2Mn	60Si2Mn	60Si2Mn	60Si2Mn
valve handle nuts	45(ZCuZn25a16Fe3Mn3)

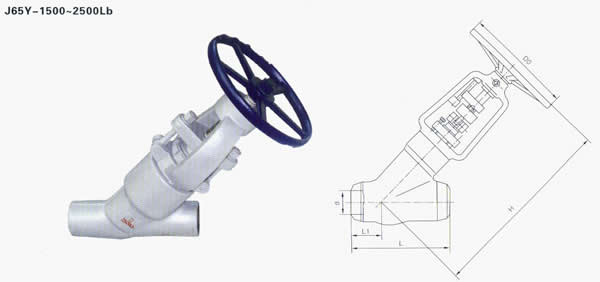

Size and

J65Y-1500Lb
Specifications DN	D	L	Lo	H	Do	Weight (kg)
in	mm					Weight (kg)
2 1/2	56	330	130	670	360	45
3	64	368	140	750	460	70
4	84	457	170	830	510	110
5	100	533	195	910	560	129
6	126	610	190	1100	610	180
J65Y-2500Lb
2 1/2	38	310	120	550	300	42
2	46	340	130	670	360	72
3	54	390	147	750	460	81
4	70	480	170	830	720	130

connection size
