Pound grade Power station stop valve

Materials & Operating temperature

Name	Trademark
Body	WCB	WC1	WC6	WC9
valve clack	25	15CrMoA	12Cr1MoVA	12Cr1MoVA
valve seat	25	15CrMoA	12Cr1MoVA	12Cr1MoVA
Cap	25	WC1	WC6	WC9
valve handle	1Cr17Ni2	1Cr17Ni2	SUH600	SUH600
valve handle	1Cr17Ni2	1Cr17Ni2	20Cr1MoV1A	20Cr1MoV1A
support	WCB	WCB	WCB	WCB
support	WCB	WC1	WC6	WC9
seal ring	S soft steel (Reinforced Flexible Graphite )		S soft steel	F soft steel
packing	Reinforced Flexible Graphite
valve handle nuts	45(CuZn25A16Fe3Mn3)
Operating temperature	≤425℃	≤450℃	≤540℃	≤570℃

Size and connection size

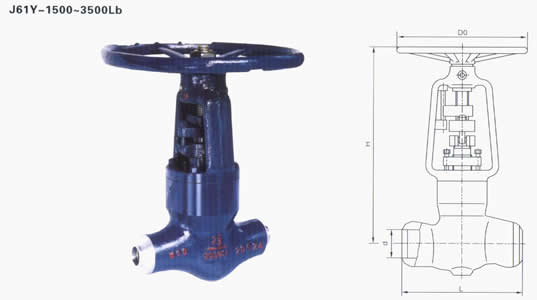

J61Y-1500Lb
Specifications DN	d		L			H		D0			Weight (kg)
in	mm
3	64		390			848		510			150
4	84		480			910		560			240
5	100		580			1030		610			251
J61Y-2000Lb, J61Y-2500Lb
Specifications DN	d		L			H		D0			Weight (kg)
in	mm
2 1/2	50△	46*		420	815△		857*		510	160△		250*
3	60△	54*		470	895△		940*		560	200△		290*
4	80△	70*		570	1024△		1085		700	280△		325*
Note：△-J61Y-2000Lb *-J61Y-2500Lb
J61Y-3500Lb
Specifications DN	d		L			H		D0			Weight (kg)
in	mm
2 1/2	38		480			890		460			235
3	48		640			1030		560			425

Pound grade Power station stop valve

Size and connection size

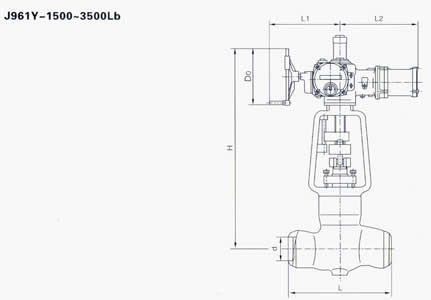

J961Y-1500Lb
Specifications DN	Model	d	L	H	D0	L1	L2	Weight (kg)
in	Model	mm						Weight (kg)
3	SMC-00	64	390	1030	305	400	555	265
3	SMC-0	64	390	1077	305	410	565	270
4	SMC-0	84	480	1030	305	410	565	384
4	SMC-1			1070	305	420	654	490
5	SMC-1	100	580	1125	305	420	654	520
5	SMC-2	100	580	1135	457	440	688	642
6	SMC-1	126	630	1681	305	420	654	804
8	SMC-1	158	770	1860	305	420	654	948
J961Y-2000Lb
Specifications DN	Model	d	L	H	D0	L1	L2	Weight (kg)
in	Model	mm						Weight (kg)
2 1/2	SMC-0	50	420	975	305	410	565	340
2 1/2	SMC-1	50	420	1015	305	420	654	406
3	SMC-0	60	470	1060	305	410	565	388
3	SMC-1	60	470	1095	305	420	654	470
4	SMC-1	80	570	1220	305	420	654	542
4	SMC-2	80	570	1235	457	440	688	606
5	SMC-2	96	660	1425	457	440	688	646
5	SMC-3	96	660	1500	610	690		874
6	SMC-2	118	760	1480	457	440	688	780
6	SMC-3	118	760	1560	610	690		1100
